EASY PRESS

(упаковка та транспорт не враховуються)

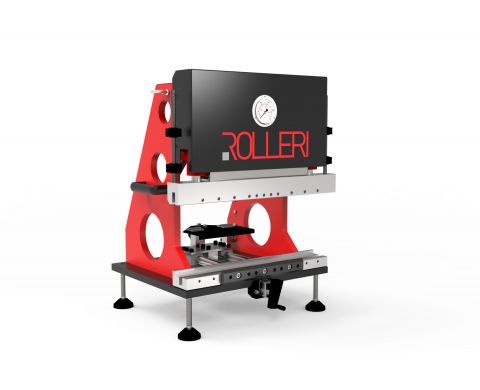

EASY PRESS Rolleri is a manual pressbrake that doesn’t have special placement needs or particular connection to fixed systems. Thanks to these features it is a really versatile machine.

STANDARD MODEL

Weight without tools 111 kg
Bending Force Max 6.5 Ton
Bending length Max 415 mm
Depth recess 100 mm
Ram operating range Max 110 mm
Distance between Ram and Table Max 180 mm
Back gauge moving range Max 200 mm
Tools R1
Promecam tang with base of 60 mm
Operating control Manual lever*
Oil type Type DTE 24
Pedal pneumatic pressure 6 bar
Pedal-Press Connection Cable 2.5-3 m with female connection ¼ gas

*Pedal control on request

SUPER SIX MODEL

Weight without tools 120 kg
Bending Force Max 6.5 Ton
Bending length Max 415 mm
Depth recess 100 mm
Ram operating range Max 110 mm
Distance between Ram and Table Max 250 mm
Back gauge moving range Max 200 mm
Tools R1
Promecam tang with base of 60 mm
Operating control Manual lever*
Oil type Type DTE 24
Pedal pneumatic pressure 6 bar
Pedal-Press Connection Cable 2.5-3 m with female connection ¼ gas

*Pedal control on request

MAINTENANCE

Easy Press rollery requires just a few mintenance intervention, being manual and without electrical system.
Monthly maintenance:

  • Check oil level in the pump tank on the right side. In case of low level fill up with specific oil for hydraulic systems
  • Check screws and drive units to verify any mechanical damage.
